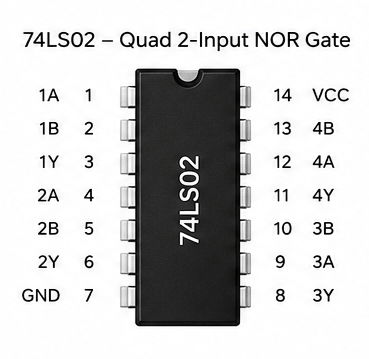

7402 Quad 2-Input NOR Gate IC

The 7402 Quad 2-Input NOR Gate IC is a digital logic integrated circuit that features four independent NOR gates in a single package. A NOR gate produces a HIGH output only when all inputs are LOW; if any input is HIGH, the output becomes LOW.

As a universal logic gate, NOR gates can be combined to create other logic functions, making the 7402 IC an important component for digital electronics learning and circuit development. The IC comes in a standard DIP package, making it suitable for breadboard prototyping and PCB applications.

Features:

• Four Independent 2-Input NOR Gates
• Standard DIP Package
• TTL Logic Compatible
• Reliable and Stable Operation
• Easy Breadboard and PCB Integration
• Universal Logic Gate Functionality

Applications:

• Digital Logic Circuits
• Logic Gate Experiments
• Educational Projects
• Embedded Systems
• Industrial Control Systems
• Logic Design Applications
• Electronic Circuit Development
